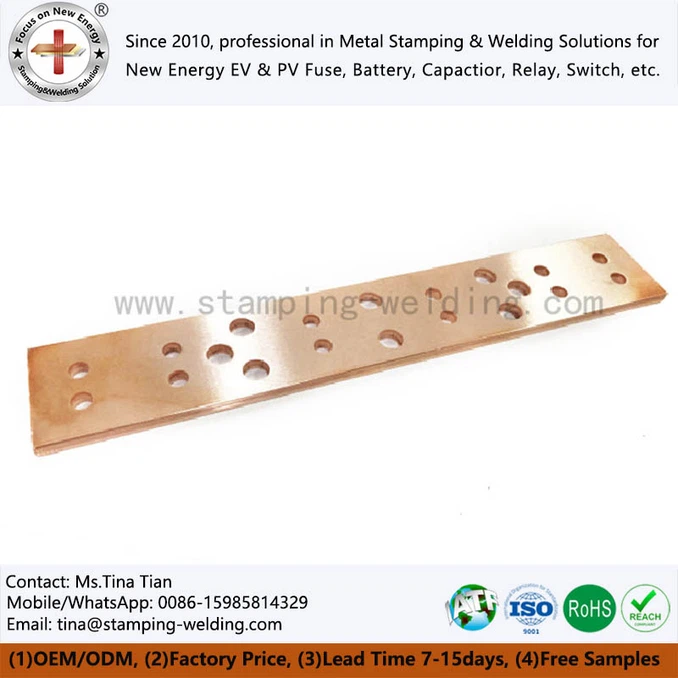

Disassembly Of The Core Working Principle Of Copper Grounding Busbar, Building A Solid Electrical Grounding Safety Defense Line

In the entire power distribution and electrical operation and maintenance system, grounding components are core basic accessories for avoiding electrical safety hazards and stabilizing equipment operation. Among them, copper grounding busbar have become an essential core conductor for all-area electrical grounding projects due to their strong adaptability and stable conductivity. As a standardized grounding component, Copper Bus Bars for Earthing System are specifically adapted to various indoor computer rooms and outdoor power distribution stations. Their core purpose is to collect stray currents from faults, instantaneous leakage currents, and lightning currents that frequently occur in outdoor conditions. Relying on an ultra-low impedance dedicated current-carrying structure and standardized electrical layout logic, and relying on two core underlying logics-equipotential linkage adaptation and low impedance rapid current discharge-it supports the compliant and long-term operation of grounding systems in all scenarios and is compatible with various high and low voltage electrical complete set construction standards.

From the perspective of the core operational logic, the compliant deployment of the grounding busbar relies on the dual professional principles to solidify the foundation of power protection. The two operational logics have a clear division of labor and complement each other, comprehensively ensuring the reliable operation of the grounding system.

• Global Equipotential Bonding: The Grounding Copper Busbar utilizes standardized bolt-fastening technology to connect and integrate all exposed metal components in the computer room, including the metal casings of electrical equipment, integrated lightning protection systems, and cabinet metal supports. This allows for precise control of potential values ​​across the entire area, unifying and balancing the reference potential of all electrical points. It effectively avoids potential differences between different equipment casings and metal components caused by aging insulation, equipment overload, or sudden leakage, thus isolating potential hazards such as step shock and contact shock at the source. It is compatible with protection standards for all scenarios in industrial plants and residential power distribution.
• Low Impedance Directional Rapid Current Discharge and Collection: The copper substrate itself possesses an inherent advantage in ultra-low resistance, conforming to the mass production and adaptation standards for tin-plated copper busbars. Under conditions of sudden leakage impacts or instantaneous high-voltage lightning pulses, it can establish a dedicated current-carrying channel with extremely low loss and rapid response. It stably bears instantaneous high-current loads throughout the entire process, directionally guiding high-risk currents into the deep grounding grid without obstruction. At the same time, it has the practical effect of collecting and converging ground wires throughout the entire area, organizing the scattered segmented grounding wires on site, integrating them into a unified and standardized grounding transfer node, connecting to the main grounding network, and avoiding the grounding failure risks caused by messy wiring connections.

In the actual operation and maintenance of electrical systems across the entire domain, copper grounding bars are mainly suitable for two types of high-risk protection scenarios to ensure the safe operation of power distribution systems. Under routine maintenance conditions, industrial electrical control equipment and high-power civilian machinery are prone to insulation damage, aging of the core components, and leakage hazards. Leakage current can be channeled through the grounding line to the ground bus bar electrical panel, and then quickly discharged into the ground via the copper grounding busbar, effectively avoiding the risk of electric shock to personnel. Under outdoor lightning protection conditions, the lightning protection device quickly conducts and collects the instantaneous high-voltage, high-current generated by lightning strikes to the copper ground bus bar. Utilizing the excellent electrical and thermal conductivity of copper, it quickly releases pressure and dissipates current, preventing high-voltage pulses from puncturing precision electrical components and distribution cabinets, thus ensuring the long-term safe and stable operation of outdoor power equipment.

In a comprehensive electrical grounding protection system, the standardized installation of copper grounding busbars is a crucial measure to ensure personal safety, stabilize equipment operation, and extend system lifespan. Standardized on-site use with Copper Bus Bar Tapped effectively isolates the risk of electric shock from leakage current, quickly releases static electricity and lightning overvoltage, and prevents damage to precision electrical appliances and power distribution equipment. The product is also compatible with Backplane Bus Bar integrated installation, adapting to various engineering scenarios such as uninterrupted power supply maintenance, industrial power distribution, and outdoor photovoltaic systems, comprehensively strengthening the grounding guarantee for the safe operation of electrical systems.

During project implementation, the selection of materials and structural design directly determine the service life of the grounding system. By contacting us as needed, you can obtain a professional selection and matching solution for copper grounding busbar that is precisely adapted to the on-site working conditions.
