Industry knowledge analysis of relay brass shell and brass pins

In the field of electronic components, relays are the core components for circuit switching and signal control. The material selection of their shell protection and internal connection components directly determines product stability, service life and safety performance. Among them, brass has become the mainstream material selection for relay shells due to its excellent comprehensive performance, and brass pins, as key connection components, are widely used in various electrical connection scenarios due to stringent performance requirements. Both are important guarantees for the normal operation of electrical equipment. Among them, the material standard of Electrical Brass Switch Socket Part also has common industry specifications with relay brass components.





























































The core material of the relay brass shell is brass, which is an alloy based on copper with the addition of zinc. By accurately adjusting the ratio of copper and zinc, it can adapt to the performance requirements in different scenarios. Relay shells bear the important responsibility of protecting internal coils, contacts and other precision structures. They need to have protection, conductivity, and structural strength at the same time. Brass takes into account these core qualities and has become an ideal material for relay shells. Compared with other metal materials, its adaptability and cost-effectiveness are more advantageous. It is similar to the material properties of Cold Stamping Brass for Switch.

From the perspective of the core components and characteristics of brass, the proportion of its components directly determines the performance. In the manufacture of relay casings, brass models with a moderate copper-zinc ratio are usually selected, which not only ensures the convenience of processing but also meets the needs of use. The most prominent advantage of brass is its good electrical conductivity. Compared with pure copper, its electrical conductivity is better, which can effectively reduce the resistance loss when the relay is working, reduce energy consumption, and ensure stable circuit signal transmission; it also has strong corrosion resistance and can withstand the atmosphere, water vapor, etc. Erosion by environmental factors prevents oxidation and corrosion of the shell and extends the overall service life of the relay. In addition, brass has outstanding mechanical strength and can withstand a certain amount of external impact and extrusion, effectively protecting the internal precision components from damage and building a solid protective barrier for the stable operation of the relay.

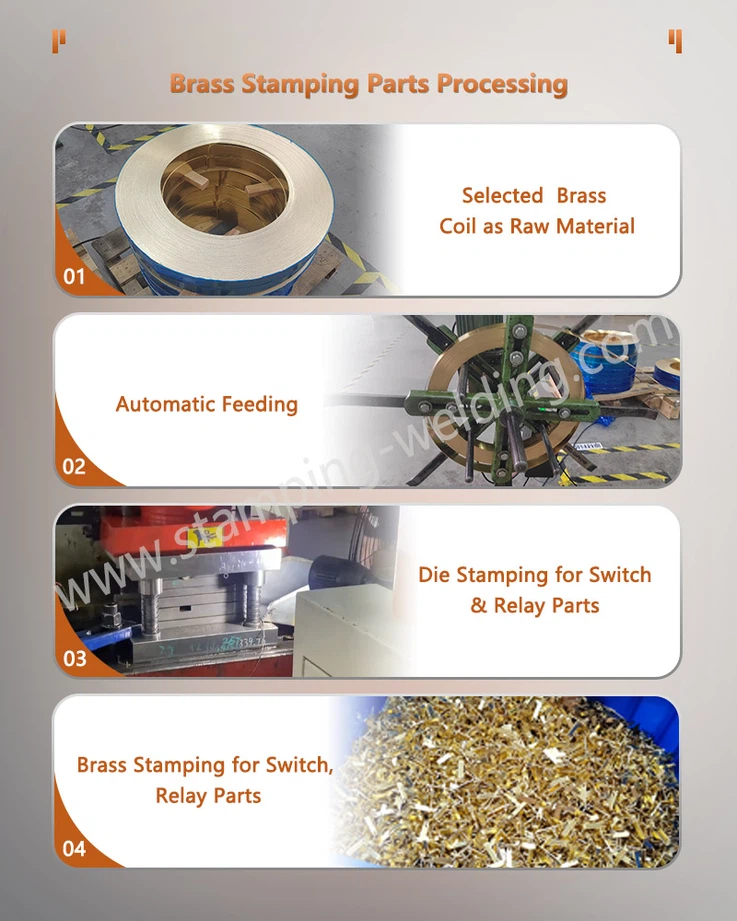

The manufacturing process of the relay brass shell directly affects the dimensional accuracy, surface quality and structural stability of the product. The mainstream processes include casting, forging and stamping, among which the stamping process is widely used in mass production due to its high efficiency and high precision. In the actual production process, an appropriate processing technology will be selected based on the structural complexity and size requirements of the shell. At the same time, a reasonable heat treatment process will be used to further optimize the mechanical properties and corrosion resistance of the brass shell to ensure that the shell can accurately fit the internal structure of the relay to achieve close fit and effective protection. For some process standards, please refer to the processing specifications of Electrical Brass Press Parts For Switch Socket.

The brass shell has a direct and critical impact on the overall performance of the relay. A high-quality brass shell can not only provide reliable protection for internal components and prevent damage to the relay from dust, water vapor, external forces and other factors, but also ensure that the relay works normally in harsh environments such as high temperature and humidity, reducing the incidence of failures. In addition, the excellent electrical conductivity of the brass shell can also help optimize the electrical performance of the relay, reduce losses during circuit transmission, improve the working efficiency and stability of the relay, and provide guarantee for the normal operation of various electrical equipment.













































































As a key component for signal and power transmission in connecting devices, brass pins have performance requirements covering multiple dimensions such as physics, chemistry, mechanics and electricity. In terms of physical properties, the pins need to have appropriate tensile strength, hardness and toughness to prevent deformation, fracture or embrittlement during work. At the same time, the density needs to be reasonably controlled to ensure that they can withstand stable pressure during insertion, removal and crimping. In terms of chemical composition, the proportion of copper, lead, tin and other elements in brass pins directly affects its processing performance and final mechanical performance. For example, higher copper content may make processing more difficult, but can significantly increase hardness and strength. The mechanical aspect emphasizes high-precision dimensional control and good surface quality. With the help of customized processes such as Customized Brass Stamping Contact Parts For Wall Socket Plug, it can ensure that the connection between pins and other components is stable and effective, and avoid leakage or poor contact caused by dimensional deviation or surface oxidation.

In terms of electricity, pins need to have excellent conductivity, appropriate impedance, and sufficient current-carrying capacity to ensure the stability and safety of signal transmission and prevent overload from causing component damage or more serious safety accidents. These requirements vary depending on the application field. For example, in scenarios such as switch sockets and wall sockets, the design standards of Brass Contact Plug Pin for Electric Switch Socket Parts and Brass Contacts Crimp Terminal Block Assembly For Socket Switch will be adjusted accordingly based on the rated current and environmental conditions.

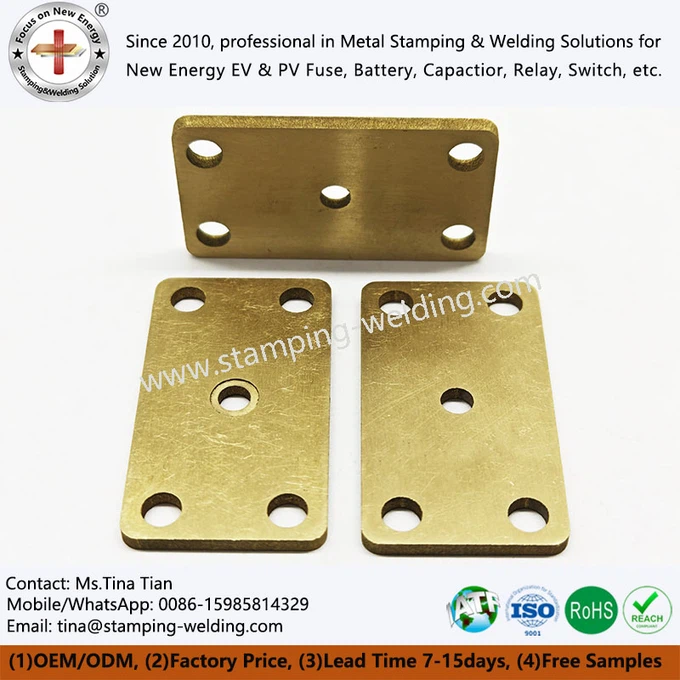

Our production line covers all types of Relay Pin Brass Terminal, using advanced technology to ensure that each product has excellent mechanical strength and dimensional stability. When you choose us, you choose high quality. Let us become your trustworthy partner and jointly promote the innovative development of the electrical industry.
