Laminated BusBars: A Detailed Explanation Of Core Components in High-power Electrical Distribution

With the rapid development of high-power electrical equipment, the new energy industry, and data centers, traditional power distribution connection components can no longer meet the needs of high-voltage, high-current, and high-density applications. Laminated BusBars, with their outstanding performance advantages, have become core components in power distribution systems for various high-end electrical equipment and are widely used in multiple industrial and consumer sectors. Among them, laminated insulated copper bars for IT data cloud server cabinets are specialized components adapted for high-power-density scenarios. The following section will explain in detail the structure, performance, and practical value of this type of product.





Laminated copper busbars are precision power distribution connectors with a rigorous overall structure. Their materials and manufacturing processes meet high-voltage, high-current transmission standards. The conductors are made of multiple layers of T2 oxygen-free copper sheets. Copper's excellent conductivity ensures stable current delivery. The surface of the copper bar is tin-plated, but nickel or silver plating can be customized to meet specific application requirements. This prevents oxidation and rust, reduces contact resistance, and further enhances conductivity stability. This is the fundamental guarantee for the long-term stable operation of the laminated copper busbar.

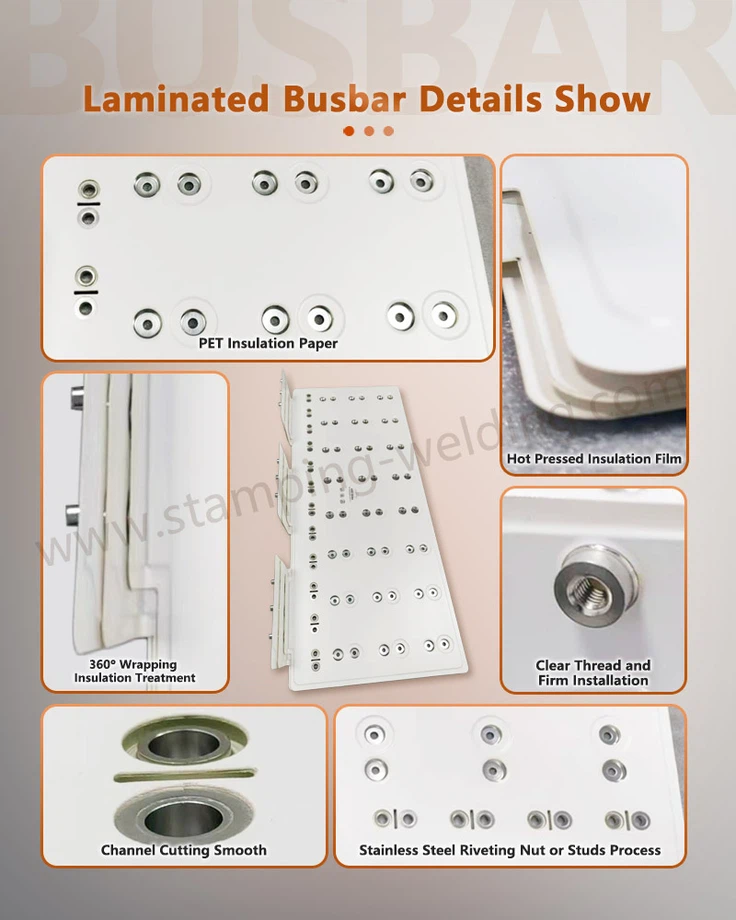

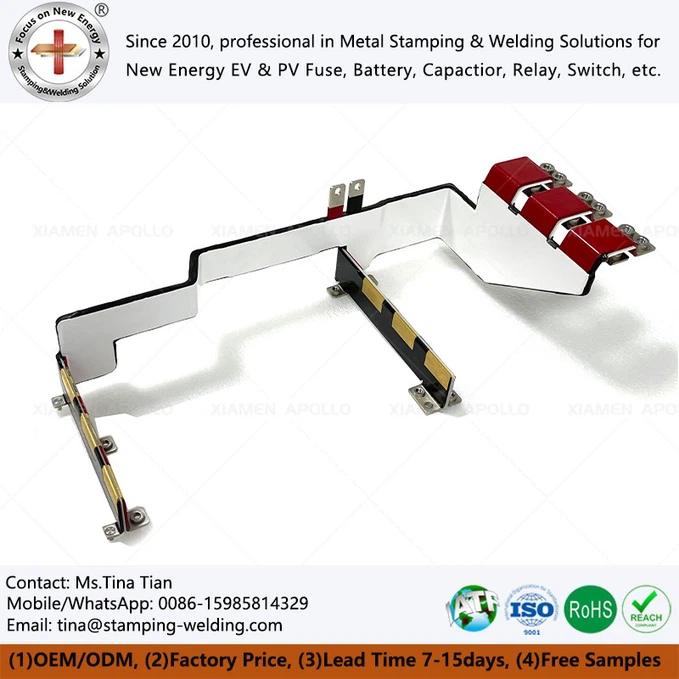

In terms of insulation protection, the product's outer layer is entirely covered with a flame-retardant composite insulating film and heat-shrink tubing, typically using a black and white color scheme to clearly distinguish the positive and negative terminals of the circuit and prevent wiring errors. This type of insulation material has high insulation strength, withstands voltage breakdown, and is also wear-resistant and anti-aging, capable of withstanding harsh operating conditions under long-term energized conditions. Additional red insulating sleeves are installed at the terminal areas, providing both high-voltage safety protection and a prominent warning effect. Some terminal areas also have yellow and black warning labels to further enhance the safety of installation and use.





As a high-performance power distribution component, the Laminated BusBar boasts electrical performance far exceeding that of traditional wiring harnesses and ordinary copper bars. Its tightly stacked positive and negative terminals achieve ultra-low loop inductance, suppressing voltage spikes and reducing equipment losses. Combined with the low impedance and strong current-carrying capacity of T2 copper, it not only delivers high-efficiency power transmission and lower energy consumption but also possesses excellent electromagnetic compatibility, effectively suppressing electromagnetic interference. Furthermore, this component's compact structure significantly saves internal space and supports modular integration design, allowing for the integration of various accessories, simplifying assembly and subsequent maintenance, and improving operational efficiency.





The Laminated Flexible BusBar combines excellent heat dissipation performance with mechanical strength. The copper material combined with the flat and thin plate structure provides a large heat dissipation area and fast heat dissipation, which can effectively control the operating temperature rise and avoid overheating failure. The integrated lamination process makes its structure stable, vibration and impact resistant, and the connection is not easy to loosen or fall off. At the same time, the product's insulation material meets high standard flame retardant requirements, and the conductor is treated with anti-corrosion and anti-oxidation treatment, making it safe, durable, and long-lasting, which can significantly improve the reliability of equipment operation.





• New Energy Applications

In the new energy sector, these products are primarily used for high-voltage, high-current power distribution connections, mainly in power battery packs, energy storage power stations, and industrial and commercial energy storage cabinets. They can replace traditional rigid copper busbars, enabling flexible installation and effectively compensating for equipment installation tolerances and thermal expansion and contraction deformation, fully meeting high-voltage electrical safety standards. For equipment such as photovoltaic inverters and wind power converters, Laminated Bars for PV Inverters can adapt to complex internal spaces, achieving compact wiring and further improving power transmission efficiency.

• Power Electronics and Special Industrial Applications

In the power electronics field, these products are commonly used for the main circuit conductive connections of UPS power supplies and industrial frequency converters. For core components such as IGBT modules and capacitor banks, dedicated laminated busbars can achieve precise docking, effectively reducing circuit losses. They also exhibit excellent adaptability to special industrial scenarios, and can be used in rail transit traction electrical systems, electric vehicle fast charging piles, high-power welding machines, and other equipment, ensuring long-term stable power supply for high-power equipment.

• Computing Power Communication and Data Center Applications

In the field of computing power communication, laminated bus bars for telecom and stacked bars adapted for computer equipment are specifically designed for high-density, high-power data centers, solving the high-power supply challenges brought about by the surge in AI computing power. As the power consumption of a single server rack continues to rise, these laminated insulated copper busbars have become core components for data center power supply, ensuring the stable operation of hardware such as servers, switches, and storage devices, and helping data centers improve energy efficiency and reduce operating costs.





Laminated busbars are not simply circuit connectors, but rather specialized power distribution solutions that integrate high-efficiency conductivity, safety protection, compact layout, and stable heat dissipation. From new energy equipment to industrial power equipment, from data center computing hardware to special transportation electrical systems, various specialized laminated bar can specifically solve high-voltage, high-current power distribution problems, balancing efficiency, safety, and durability. They are key components for driving the upgrading of electrical equipment and improving power supply quality, and will have even broader application prospects in the future with the development of high-end manufacturing and new energy industries.
