Knowledge analysis of the Copper Braided Flexible Busbar industry

In the fields of electronic engineering and industrial manufacturing, soft copper wire has become a core basic material in various electrical equipment and systems due to its excellent conductivity and flexibility. Among them, customized braided soft copper wire plays a key role in many segmented scenarios due to its ability to be adapted on demand. As its core category, copper braided wire relies on its unique structural advantages, taking into account both conductive performance and mechanical toughness, to adapt to a variety of complex application scenarios. This article will deeply explore the core characteristics of custom braided soft copper wires, focusing on analyzing the characteristics and applications of grounding soft copper wires, brush wires, special soft copper braided tapes and rectangular bare copper stranded wires, to help industry practitioners fully understand the core value of such basic materials.

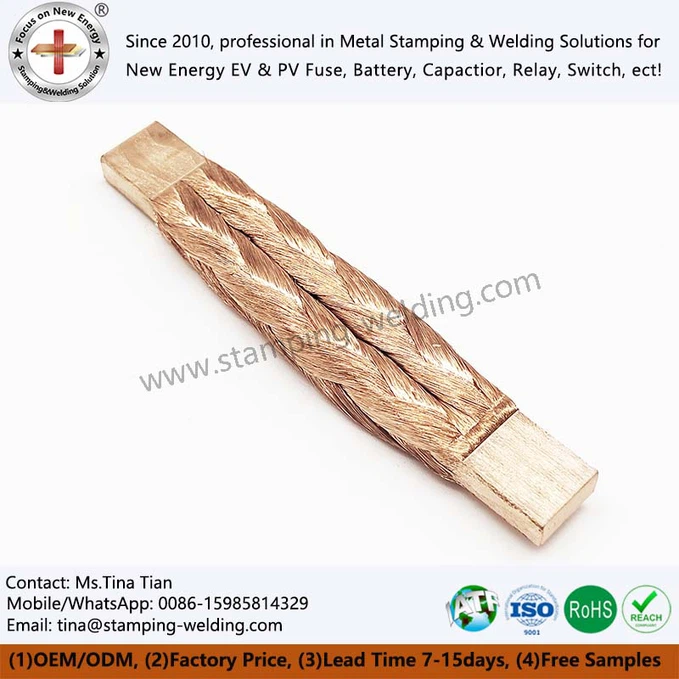

Flat Copper Braided Wire uses a unique braiding process to improve the mechanical strength, stretch resistance, and kink resistance of the copper wire. Among them, the Copper Stranded Flexible Busbar is designed to maintain a stable electrical connection in complex dynamic environments. Especially in grounding applications, the braided structure ensures conduction reliability under repeated movement or bending conditions, which directly supports the safe operation of the system.













































































The manufacturing of flexible copper conductors involves many aspects such as material selection, braiding or stranding, end treatment and post-processing. The raw materials usually use T2 copper or Cu-ETP1 high-purity copper to ensure that the conductivity is not less than 100% IACS standard. In the braiding process, precise control of monofilament diameter, braiding pitch and density directly affects the flexibility and current-carrying capacity of the product - thinner monofilaments and higher braiding density can improve flexibility, but manufacturing costs and process feasibility need to be balanced.

End connection is a critical process in flexible conductor manufacturing. The crimping process uses hydraulic equipment to tightly press the copper terminals to the braided body or stranded body. The material filling rate needs to reach more than 95% to ensure low contact resistance in Copper Stranded Flexible Busbar. The welding process is suitable for occasions with high reliability requirements. Argon arc welding is performed under a protective atmosphere, which can effectively prevent oxidation and ensure the strength of the weld. The finished product must undergo DC resistance test, tensile test and appearance inspection to ensure that it meets the technical requirements of relevant industry standards for Copper Braided Busbars For Electrical.













































































Copper conductors are prone to oxidation in humid or corrosive environments, resulting in increased contact resistance. Therefore, surface treatment is an important part of ensuring long-term reliability. The bare copper state is suitable for dry indoor environments; tin plating can enhance oxidation resistance and solderability, and is the most common surface treatment method in industrial applications; nickel plating provides higher wear resistance and corrosion resistance, and is suitable for frequent plugging and unplugging or harsh working conditions; silver plating provides optimal conductivity and corrosion resistance in high-frequency or large current situations. The uniformity and adhesion of surface treatment need to be verified through salt spray test, adhesion test and other means to ensure that stable electrical and mechanical properties are maintained throughout the product's life cycle.





























































As a supplier deeply involved in the field of copper braided wires, we focus on the R&D and manufacturing of various high-performance Copper Braided Flexible Busbar products and can provide customers with professional customized solutions. If you have any related product needs or technical consultation, please feel free to contact us for detailed information.
